Peer Fusion Supra-Cluster™ Gateway Software


The Supra-Cluster™ Gateway software bridges multiple clusters to form a vast storage and computational pool:


  • Scale-out Supra-Cluster™ Architecture:
    • Assemble hundreds of clusters and their thousands of peers.
    • Aggregate the storage capacity of thousands of peers with great resiliency and performance.
    • Deploy applications on thousands of peers for direct access to the local data.
  • Simple to Operate:
    • Simple to setup, configure and manage.
    • All your data within a single distributed namespace.
    • Select the resiliency level you require.
    • Select the performance level you want.

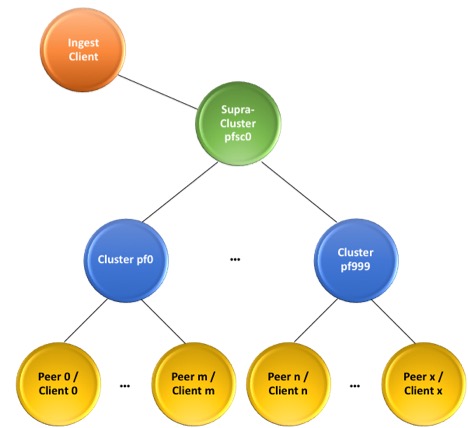

A Peer Fusion Supra-Cluster™ is a Tightly Integrated Group of Clusters.


Supra-Cluster™ Gateways provide a VFS interface to a pool of clusters.

Recommended Hardware ConfigurationMinimumPreferred
Client LAN (outside world)1+ x 1GbE1+ x 10GbE
Cluster LAN (intra-cluster)1+ x 1GbE1+ x 10GbE
CPUMulti-Core x64Intel Multi-Core Xeon
Memory16+GB32+GB
Recommended Software Configurations
OSCentOS 7.6+
Local FilesystemBoot: XFSBoot: XFS
Samba (optional)Version 4.8
NFS (optional)
OSFreeBSD 10.4+
Local FilesystemBoot: UFSBoot: ZFS
Samba (optional)Version 4.1
NFS (optional)
